Frame-by-frame animation with UIView

Sometimes the built-in animation curves in UIView (or Core Animation for that matter) just don't cut it.

You want to animate a bouncy ball with (somewhat) realistic physics, or just need to use an animation curve that's not ease-in, ease-out, ease-in/out, or linear. But writing a bunch of boilerplate code for setting up your CAKeyframeAnimations can really bog down the flow of your UI code.

Never fear, grab UIView+ExplicitAnimation from the repo on github.

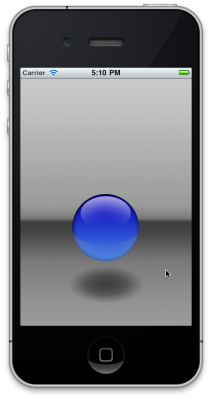

simulator 212x400

Here's the relevant code for the demo:

CGPoint startCenter = ((CALayer *)[bouncyView.layer presentationLayer]).position;
CGPoint endCenter = bouncyViewCenter;

//Scope for variables in physics simulation
__block double v = -402;
__block double p = startCenter.y;
double elasticity = 0.7;
double g = 1080;
//Add an additional second for each 100 pixel of height we have
double duration = 2.0 + 0.01 * (endCenter.y - startCenter.y);

[UIView animateExplicitlyWithDuration:duration
                            frameRate:30.0
                           animations:^(double t, double dt) {
    DNUIViewExplicitAnimationProxy *objectProxy = [bouncyView explicitFrameProxy];
    DNUIViewExplicitAnimationProxy *shadowProxy = [shadowView explicitFrameProxy];

    //Physics simulation here :)
    //If we would surpass the target location, bounce instead
    if (p + dt * v > endCenter.y) {
        v = -elasticity * v;
        p = endCenter.y;
    } else {
        v += g * dt;
        p += dt * v;
    }
    objectProxy.alpha = 1.0 + 0.5 * sin(0.1 * t);
    objectProxy.center = (CGPoint) {.x = endCenter.x, .y = p};

    double d = endCenter.y - p;
    shadowProxy.alpha = 0.8 / (1.0 + 0.01 * d);
    shadowProxy.transform = CGAffineTransformMakeScale(1.0 + 0.005 * d,
                                                       1.0 + 0.005 * d);
}];

Note how simple it is and there's no boilerplate boxing/unboxing of floats or CGPoints.

I decided on the objectProxy business instead of swizzling -[UIView actionForLayer:forKey: to get the changes you want in the value of alpha or center or what have you. If you're less timid about swizzling, the proxy business could be eliminated.
